Overview

The Activity menu provides the user with the ability to view the structure submissions and deletions in the Registry, and to view how a specific structure has been modified over time. The activity section is split into four parts:

SDMX Transactions

The SDMX Transactions provide a record of each transaction over time. A Transaction is the submission of a structure, group of structures or data registration. The submission may have resulted from the structure being modified in the UI or via the web service.

Each Transaction is recorded on the RSS feed, and made available in the UI.


Options Available

Download Transaction
The transaction can be downloaded in SDMX-XMLformat, and will include the submitted structure(s) alongside the submission action (Replace, Delete).

View Details This option displays the transaction's detail and also provides the ability to download the log file in CSV format.

Roll Back to selected transaction Allows you to roll back the Registry structures to the selected transaction point. Any structural modifications made after that point will be reverted.

Structure Submissions

The Structure Submission option provides a breakdown of all the structural metadata content of the Registry (including any content that has been subsequently deleted). Each structure artefact can be viewed to see when it was modified over time, and each revision to the structure can be downloaded in SDMX format.



Options Available

Download Transaction
The transaction can be downloaded in SDMX-XMLformat, and will include the submitted structure(s) alongside the submission action (Replace, Delete).

View Details This option displays the transaction's detail and also provides the ability to download the log file in CSV format (provided that Log Events has been enabled in Audit Settings).

Compare Allows you to compare two modifications against each other.

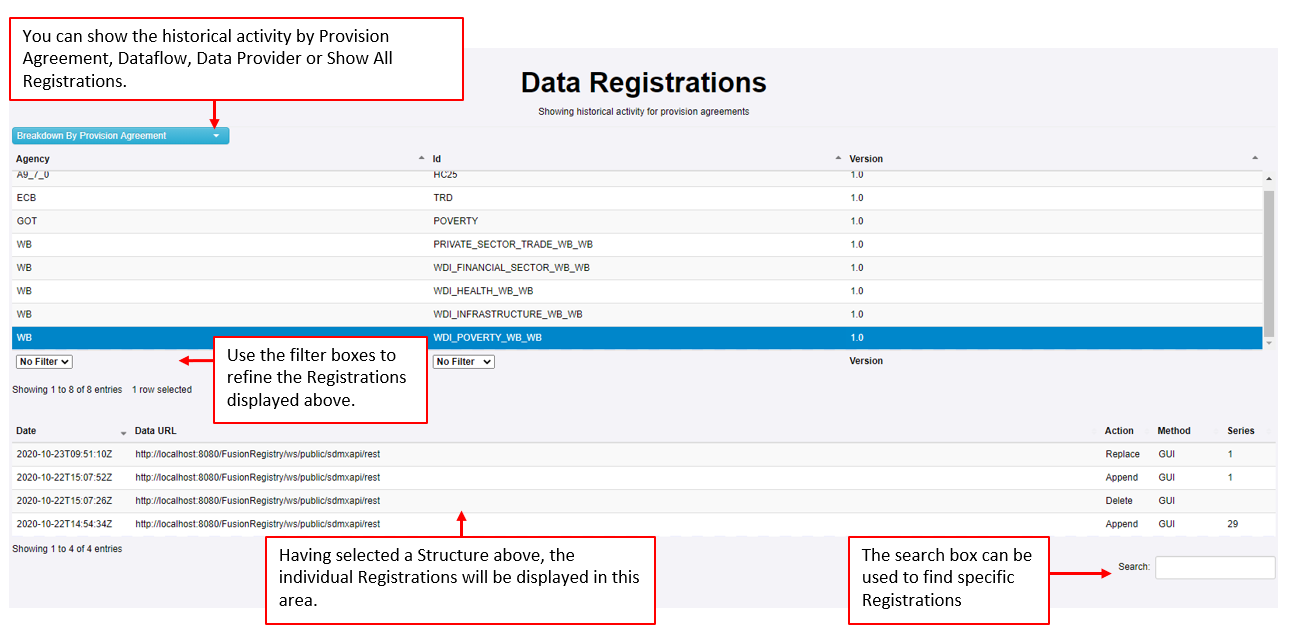

Data Registration

The Data Registrations section provides information on all the data registrations in the Registry. The information can be broken down by Provision Agreement, Dataflow, Data Provider or as a flat list of all Data Registrations.

Each Data Registration can be expanded to provide information on the URL of the dataset, when the registration took place, and if available the reporting begin and end dates for the registered dataset.



Options Available

View Audit Details

This option displays the registration's detail and also provides the ability to download the log file in CSV format (provided that Log Events has been enabled in Audit Settings).

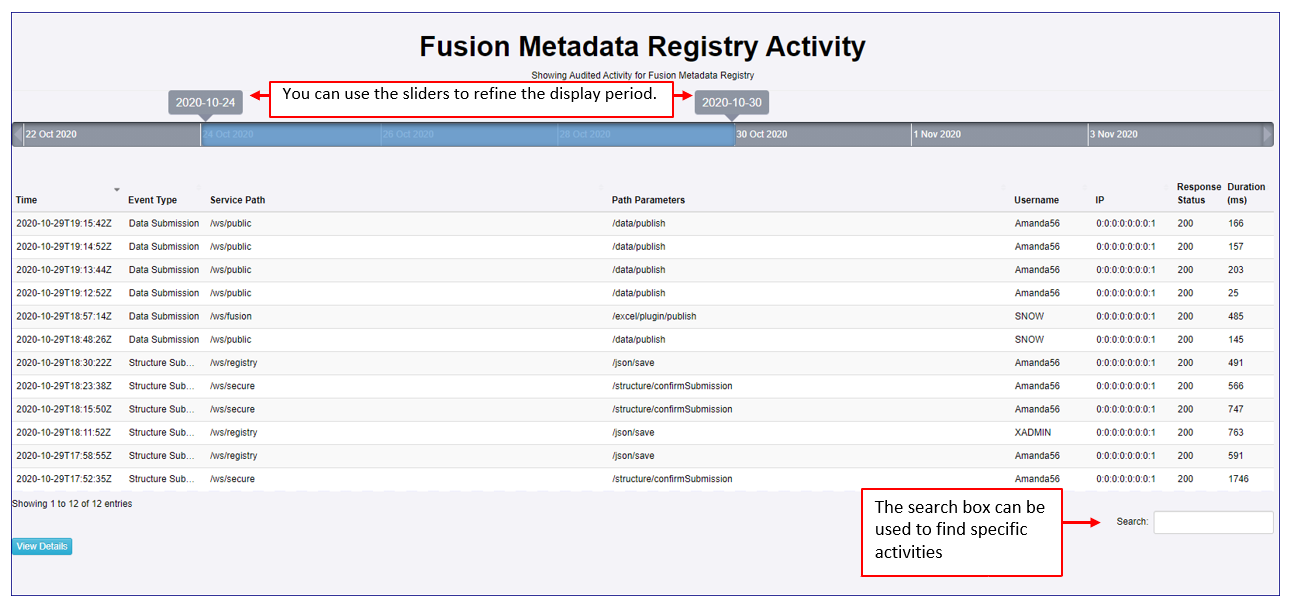

User Activity


Options Available

View Audit Details This option displays the transaction's detail and also provides the ability to download the log file in CSV format (provided that Log Events has been enabled in Audit Settings).
