Overview

Fusion Data Browser contains a number of Configuration files, which are under the dist/properties folder. The configuration files are:

  1. siteconfig.json Defines where the API to obtain data and metadata from. Configure high level display information
  2. serieslistconfig.json Defines how to display the Series List
  3. tschartconfig.json Defines the default display for the time series chart
  4. exportconfig.json Defines what export formats and export parameters to offer the user when downloading datasets
  5. browser_lang_[locale].json Contains the human readable labels used in the User Interface, additional translations can be provided for alternative languages

Site Configuration

The siteconfig.json file contains the following properties:

Property Description
ServicesAPI Points to the product web service of the Fusion Edge Server or Fusion Registry
Locales Defines which Locales are supported on the User Interface. This generates a language picker in the main menu. Metadata from the backend service will be requested in the selected Locale. If there is a corresponding browser_lang_[locale].json file in the dist/properties it will be used to decode labels in the user interface.
DatasetNavigation Defines which (if any) Concepts to allow a user to find data by (built into the sidebar)
DatasetByAgency If true this will display a breakdown of Datasets by Agency
ShowAllDatasets If true this will display a menu item which contains all Datasets in the system as child menu items

Example:

{
 "ServicesAPI" : "https://demo11.metadatatechnology.com/FusionRegistry/ws/fusion/info/product",
 "Locales" : ["en", "he"],
 "ShowAllDatasets" : true,
 "DatasetByAgency" : false,
 "DatasetNavigation": [
   {
     "Components": ["REF_AREA"]
   },
   {
     "Components": ["CURRENCY"]
   },
   {
     "Title" : "Product By Area",
     "Components": ["REF_AREA", "TRD_PRODUCT"]
   }
 ]
}

Services API

"ServicesAPI" : "https://demo.metadatatechnology.com/FusionRegistry/ws/fusion/info/product"

The Services API property is the web service URL of the Fusion Registry or Fusion Edge Server's product information service. It will match the example above, this web service needs to be accessible for the Data Browser to work. The response from the Fusion Registry is the location of all the web service entry points required by the Fusion Data Browser to operate.

Locales

  "Locales" : ["en", "he"]

The Locales property is an array of supported locales for the Fusion Data Browser. Adding a new Locale into this list will result in the Fusion Data Browser adding it to the drop down selection for the user to choose. When a user switches to the Locale all the metadata and data requested from the Registry or Edge server will be requested in the given locale. If the server is able to provide the information in this locale (i.e if the metadata has a label in the language) it will, otherwise it will revert to another language, defaulting to English.

The second purpose for the locale is to change all the labels and text in the Fusion Data Browser. This is achieved by the Fusion Data Browser loading a properties file called browser_lang_[lang].json. where [lang] is replaced with the 2 character language code selected by the user. This file is located under the properties folder. If there is no file for your locale, the the Fusion Data Browser will check all other locales in your array, in order, until it finds a file it can use to resolve all the browser labels. In the above example the "en" locale will be checked first, as it is the first locale in the array. If you wish to create labels in your locale, please copy one of the existing browser_lang files, and change the text in the file. If you wish to re-share your file with us, please get in touch.

Dataset Navigation

Dataset Navigation
Breakdown by Currency
"DatasetNavigation": [
   {
     "Components": ["COUNTRY"]
   },
   {
     "Components": ["CURRENCY"]
   },
   {
     "Title" : "Product Breakdown",
     "Components": ["TRD_PRODUCT"]
   }
 ]

The DatasetNavigation property is used to control what breakdowns are presented in the sidebar. It is an array of Objects, where each Object represents a different breakdown.

The Components array lists the Dimenions to display a breakdown for. The Dimension ID is used, however it is not specific to any Data Structure Definition, so if multiple DSDs use the same ID for a Dimension, then they will all be included in the breakdown. Each breakdown has a genearted title of 'Data by [breakdown], however this title can be changed by adding a Title property. The above configuration will generate the following Navigation in the sidebar:



If more then one Dimension ID is placed in the Array, then the breakdown becomes hierarchical.

"Components": ["CURRENCY", "FREQ"]


The above will list the available Currencies in the Sidebar, and on Currency selection, the available Frequencies for the Currency will be shown.

Series Configuration

Series list
Series item expanded

The serieslistconfig.json file is used to configure how the Series List is displayed, and contains the following properties:

Property Description
MVIndicator Each Series item can display the last Observation value as a headline figure. If the last Observation has no measure value, the MVIndicator value will be used in its place
ShowLastPeriod If Show last Period is true, it will display the date of this last Observation next to the Observation value
ShowPCH If true the Percentage change figure is presented next to the last Observation value. The percentage change is calculated based on the last 2 observation values for the Series
SparkColour Defines the colour of the line in the Time series chart which is displayed when the Series is expanded
SparkStrokeThickness Defines the thickness of the line in the Time series chart which is displayed when the Series is expanded

Example:

{
 "MVIndicator" : "--",
 "ShowLastPeriod": true,
 "ShowPCH" : true,
 "SparkColour": "#60a76d",
 "SparkStrokeThickness": 1,
}

Time Series Chart Configuration

Time Series Chart

The tschartconfig.json file is used to configure how the Time Series chart is displayed, and contains the following properties

Property Description
GroupCount Defines the number of data points plotted for long time series
SeriesLimit Restricts the time series chart to a maximum number of series plotted
SeriesDisplay Defines the default display for Time Series labels
DateFormat Defines the label presentation for different frequencies of data

Example

{
 "GroupCount": 500,
 "SeriesLimit": 20,
 "SeriesDisplay": {
   "Default": "${SERIES_KEY} \n[bold]{sdmxdate}[/] \n[bold][red]{valueY}[/][/]",
   "ACY:DF_ID(1.0)": "${EXAMPLE} [small]with[/] ${OVERRIDE}"
 },
 "DateFormat": {
   "annual": "yyyy",
   "daily": "dd-MM-yyyy",
   "monthly": "MMM-yyyy"
 }
}

Group Count

"GroupCount" : 500,

The Group count is used to prevent the time series chart from plotting every single data point on long time series. This can cause the chart to look messy, and contain far too much information for a user to meaningfully use.

Without Group Count
With Group Count=500

The Group Count value indicates the maximum number of points to plot on a time series for the displayed range. When the user zooms into the chart, the time series will be refined to show more points.

It is possible to remove the Group Count by setting it to -1.

Series Limit

"SeriesLimit" : 20,

The Series Limit prevents a user from creating a Time Series chart with too many series. The limit can be unset by setting the value to -1, howver a time series chart with thousands of series will cause a web browser to become unresponsive as it tries to render the information, so a limit is recommended.

Series Display

 "Default": "${REF_AREA}\n${SERIES} \n[bold]{sdmxdate}[/] \n[bold]{valueY}[/]",
 "ECB:EXR(1.0)": "${CURRENCY} [bold]to[/] ${CURRENCY_DENOM} \n[bold]{sdmxdate}[/]\n[bold]{valueY}[/]",

The Series Display property enables a Global configuration of the tooltips shown when a user hovers over a time series line.

Showing Series Tooltip

Without this setting, the label defaults to showing the series key, in the format A:UK:EMP, where A is the reported value in the first Dimension, UK the reported value in the second Dimension and so on.

The Series Display properties are the URN short code of a Dataflow, for example "ECB:EXR(1.0)" refers to a European Central Bank dataset for EXR (Exchange Rates) at version 1.0. The Default property can be defined to apply a label rule to any dataset that does not have a specific rule.

The Syntax includes variable placeholders for Dimension or Attribute values, dates, and observation values. Markup can be used to change the font styling or text. The following table shows the syntax:

Text Variables

Syntax Description
${REF_AREA} Replaced by the value of the Reference Area Dimension, in the Locale set on the Data Browser (or an alternative Locale if there is not one avalable in the requested Locale)
{sdmxdate} Replaced by the date in SDMX format, as reported in the dataset. For example 2001-Q1.
{valueY} Replaced by the reported observation value

Observation Value Modifiers

Syntax Description
{valueY.formatNumber('###.00')} @see AM Charts Formatting Numbers
{valueY.open} First (open) Observation value for the series, within current selection.
{valueY.high} Highest observation value for the series, within current selection.
{valueY.low} Lowest observation value for the series, within current selection.
{valueY.close} Last (close) observation value for the series, within current selection.
{valueY.sum} Sum of all values in a series, within current selection.
{valueY.count} Number data items in series, within current selection.
{valueY.average} Average values in a series, within current selection.
{valueY.change} Difference between series first and last value
{valueY.changePercent} Difference between series first and last values in percent.
{valueY.previousChange} Difference between value of current and previous items.
{valueY.previousChangePercent} Difference between value of current and previous items, in percent.

Style

Syntax Description
\n New Line
[bold]Text[/] Outputs the 'Text' in Bold
[#00ff00]Green Text[/]! Colours 'Green Text' green
[font-size: 30px]Large Text[/] Uses inline CSS to make the font-size large

Data Format

This property can be used to configure the date format for the time series chart, this needs to take a valid date format defined by the JavaScript standard https://www.w3schools.com/js/js_date_formats.asp

Export Configuration

The exportconfig.json file is used to define what Data export formats are presented to the user. The Data Formats page is a useful reference resource when defining what Data Export formats are to be offered, and what parameters are going to be offered or preset.

The exportconfig file contains the following properties:

Header text Header text
ExportFormats An array of export formats offered to the user
Parameters If the user has optional parameters for any of the export formats, they can be defined here, along with the options that can be selected

Example

{
 "ExportFormats" : [
   {
     "Label" : "Excel Series",
     "Format" : "excel-series",
     "Parameters" : ["Slice", "DimAtObs"],
     "FixedParameters" : {
       "labels" : "both"
     }
   }
 ],
 "Parameters" : {
   "DimAtObs" : {
     "Label": "data.export.param.dimatobs",
     "Parameter": "dimensionAtObservation",
     "DimensionOptions" : {
       "IncludeTime" : true,
       "Required" : true
     }
   },
   "Slice" : {
     "Label": "data.export.param.slice",
     "Parameter": "slice",
     "DimensionOptions" : {
       "IncludeTime" : false,
       "Required" : false
     },
   }
 }
}

Export Formats

Label

The label (option) presented to the user as an export format. The Label can be free text, i.e. "Excel" or if a multilingual label is required, the value can reference to a property which is then added to the browser_lang_[locale].json file, for example "format.excel".

Parameters

An optional array or variable parameters which will be presented to the user as options. Each Parameter is a reference to a definition in the Parameters section (described in the following section).

FixedParameters

An optional map of parameter name to parameter value. Fixed parameters will be used in the export request when the format is selected, the user is not given the option to change or remove these parameters. For details on what parameters are available, refer to the Data Web Service guide and each Format specific guide will have a set of parameters specific for the format, for example Fusion CSV.

Parameters

The Parameters section is used to define a Parameter configuration which is the used by one or more of the Export Format definitions (described in the previous section).

Label

The label (option) presented to the user as an export format. The Label can be free text, i.e. "Excel" or if a multilingual label is required, the value can reference to a property which is then added to the browser_lang_[locale].json file, for example "format.excel".

Parameter

The web service parameter name.

Multiple

Set to true if the user can select multiple options

Options

If the parameter has a fixed list of options, they can be provided in this section. Each option has a Label, which is presented to the user, and a Value which is the value passed to the data export web service.

Example

 "Labels" : {
   "Label": "Labels",
   "Parameter": "labels",
   "Options" : [
     {
       "Label" : "Show Names",
       "Value" :  "name"
     },{
       "Label" : "Show IDs,
       "Value" :  "id"
     },{
       "Label" : "Show Both,
       "Value" :  "both"
     }
   ]
 }

AttributeOptions

If the parameters options are the IDs of Attributes, then use the AttributeOptions object for example:

"SeriesAttr" : {
     "Label": "Include Series Attributes",
     "Parameter": "attributes",
     "Multiple" : true,
     "AttributeOptions" : {
       "Relationship" : ["series"],
       "Required" : false
  }

DimensionOptions

If the parameters options are the IDs of Dimensions, then use the DimensionOptions object for example:

"DimObs" : {
     "Label": "Partition By Dimension",
     "Parameter": "slice",
     "DimensionOptions" : {
       "IncludeTime" : true,
       "Required" : false
  }


Browser Language Configuration

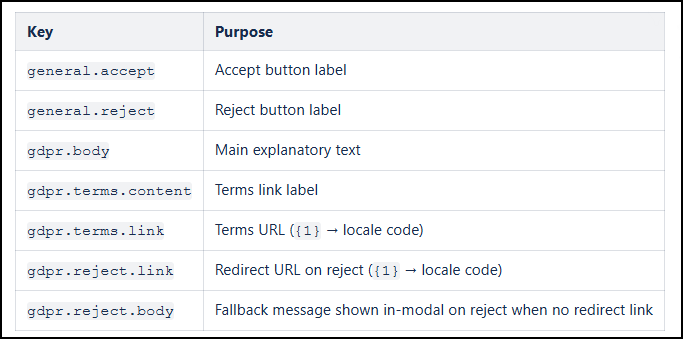

The browser_lang_[locale].json file contains a map of property name to human readable label, for example:

"confirm.text" : "Please Confirm Your Action"


The Language configuration file is used to decode labels on the User Interface, for example the name of the product, the button labels, and so on. Any metadata (Dataflows, Concepts, Codes) used by the Data Browser come from the web service, requested in the selected locale - as such the language configuration file does not play a role in decoding values in the retrieved metadata.

For each supported locale there should be a corresponding file, for example browser_lang_en.json is used if the locale on the client is set to en, browser_lang_he.json is used if the locale on the client is set to he'. If the locale is set to a value where there is no corresponding locale file, the browser_lang_en.json file will be used to decode values on the client.

It is possible to change labels in the browser lang file, or to copy the file into a new locale, however it must be noted that new labels may be added in future releases of Fusion Data Browser, and this should be taken into account when maintaining any changes made locally.
